Shenzhen Forbest makes the Oil Resist Viton Tube for hot oil and chemical service. Standard rubber tubes swell and crack. This one doesn’t. Made from virgin FKM (Viton® equivalent), it handles diesel, gasoline, hydraulic oil, and acids. Temp range: -20°C to +200°C. Flexible, tough, and low permeability. Used in fuel lines, lube systems, and chemical dosing.

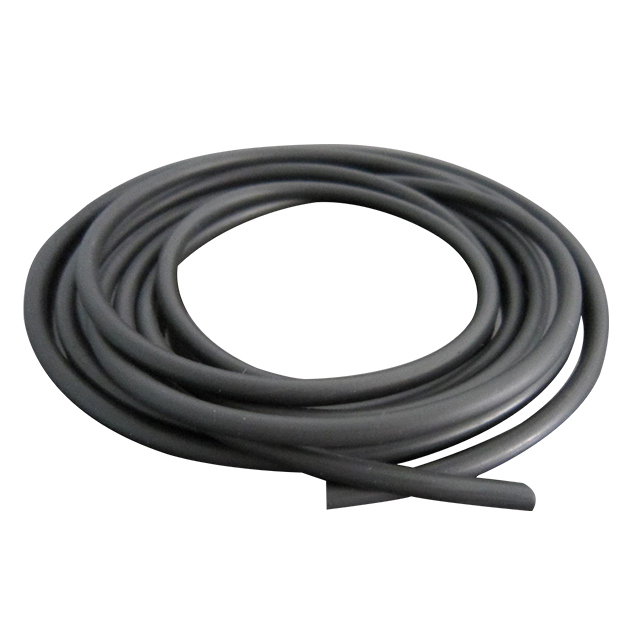

Oil Resist Viton Tube – No Swell, No Crack, No Leak
1. Product Introduction
This tube is made from FKM (fluoroelastomer), the same material used in aerospace fuel seals and F1 racing fuel systems. It does not react with petroleum oils, diesel, gasoline, hydraulic fluids, or most chemicals. It stays flexible at 200°C and does not turn into plastic at -20°C.
What makes it different:
-
Zero swelling in diesel or biodiesel
-
No hardening after 1000 hours at 150°C in engine oil
-
Compression set below 20% – fittings stay tight
-
Ozone and UV resistant – fine for outdoor use
-
Low fuel permeation – less smell, less loss
Technical Specs – Side by Side
| Property | Forbest Viton Tube | NBR Tube | Silicone Tube |
|---|---|---|---|
| Oil resistance | Excellent | Moderate (fails with biodiesel) | None (swells instantly) |
| Max temp (oil contact) | 200°C | 100°C | Not for oil |
| Chemical resistance | Acids, solvents, fuels | Limited | Poor |
| Fuel evaporation loss | < 2% per year | 10-15% per year | Not applicable |
| Service life in hot oil | 5-10 years | 6-12 months | Hours |
| Compression set @ 200°C | < 20% | Not rated | > 50% |
Sizes and Customization

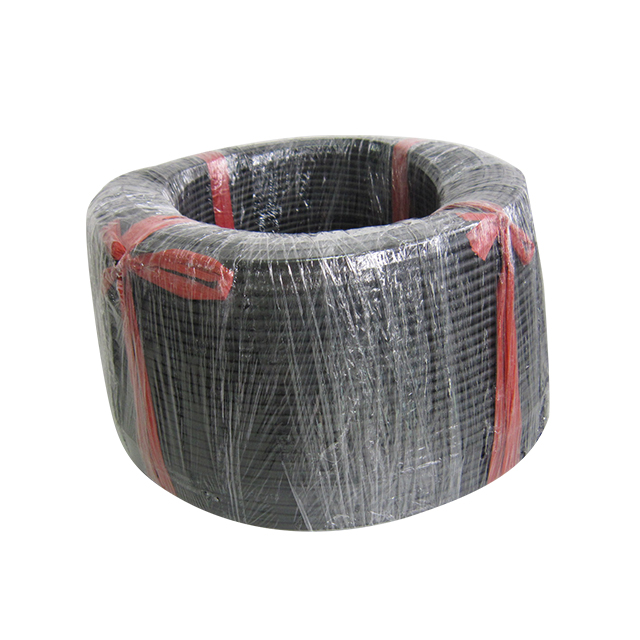

Standard sizes in stock (black, 75 Shore A):
| ID (mm) | OD (mm) | Wall (mm) | Coil length |
|---|---|---|---|
| 3 | 6 | 1.5 | 50m |
| 4 | 8 | 2.0 | 50m |
| 6 | 10 | 2.0 | 50m |
| 8 | 12 | 2.0 | 30m |
| 10 | 14 | 2.0 | 30m |
| 12 | 16 | 2.0 | 30m |
Custom options:
-
ID: 1mm to 50mm
-
Wall: 1mm to 5mm
-
Hardness: 60A to 85A
-
Color: brown, green, translucent
-
Cut length: 1m, 2m, 5m, or full coils
-
Braided reinforcement for higher pressure (ask for spec)
How to Order
Send us your ID, OD, length, and quantity. We will reply with a quote in 24 hours.
Minimum order: No fixed MOQ for standard sizes. Small quantities welcome.
Lead time: Stock sizes ship in 3 days. Custom sizes in 7-12 days.
Quality guarantee: 12 months against material defects. If the tube fails due to our workmanship, we replace it. No arguments.
