Shenzhen Forbest makes Viton (FKM) Rubber Tubing for tough jobs. Standard rubber fails in hot oil or chemicals. This one doesn’t. Made from virgin FKM. Resists diesel, gasoline, hydraulic oil, acids. Temp range: -20°C to +200°C. Low compression set keeps fittings tight. Low permeability cuts fluid loss. Used in fuel lines, chemical dosing, industrial lube systems.
Viton (FKM) Rubber Tubing from Shenzhen Forbest is made for the jobs that kill ordinary tubing. FKM (fluoroelastomer) started in aerospace. Military aircraft needed seals that would not fail in fuel and hot oil. It works. Today we use the same material for diesel engines, chemical pumps, hydraulic systems, and fuel lines.
It handles petroleum oils, diesel, gasoline, hydraulic fluids, mineral oils, and many acids. Stays flexible at 200°C. Does not turn plastic at -20°C. Resists ozone, UV, and aging for years.
Technical Specifications – Parameter Table
| Property | Forbest Viton (FKM) Tubing | Standard NBR Tubing | Standard Silicone Tubing |
|---|---|---|---|
| Oil resistance (petroleum) | Excellent | Moderate | None (swells) |
| Biodiesel resistance (B20-B100) | Excellent | Poor | None |
| Max continuous temp (oil contact) | 200°C | 100°C | Not for oil |
| Low temp flexibility | -20°C | -30°C | -50°C |
| Chemical resistance (acids, solvents) | Excellent | Fair | Poor |
| Fuel permeation loss per year | < 2% | 10-15% | N/A |
| Compression set (70h @ max temp) | < 20% | > 40% | > 50% |
| Ozone / UV resistance | Excellent | Poor | Good |
| Service life in hot oil | 5-10 years | 6-12 months | Hours |
Standard Sizes

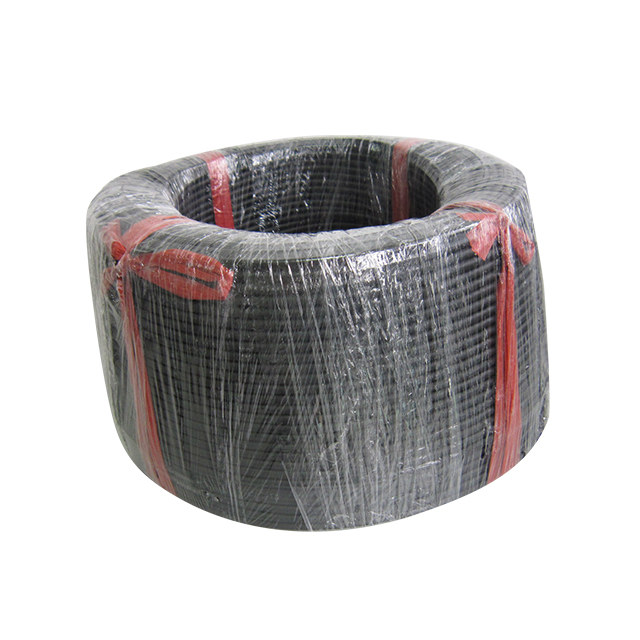

Stock sizes (black, 75 Shore A, 50m coils):
| ID (mm) | OD (mm) | Wall (mm) |
|---|---|---|
| 2 | 4 | 1.0 |
| 3 | 6 | 1.5 |
| 4 | 7 | 1.5 |
| 5 | 8 | 1.5 |
| 6 | 10 | 2.0 |
| 8 | 12 | 2.0 |
| 10 | 14 | 2.0 |
| 12 | 16 | 2.0 |
Custom options:
-
ID: 1mm to 50mm
-
OD: 3mm to 60mm
-
Wall: 1mm to 5mm
-
Hardness: 60A to 85A
-
Color: brown, green, translucent, white
-
Length: cut pieces (1m, 2m, 5m) or coils (10m to 200m)
-
Reinforcement: braided fiber or steel wire for higher pressure
Where It Gets Used
We ship Viton (FKM) Rubber Tubing to:
-
Diesel engines – fuel return lines, injector drain lines, transfer pump lines
-
Industrial hydraulics – pilot lines, case drain lines, low-pressure return lines
-
Chemical processing – acid dosing, solvent transfer, caustic lines
-
Biofuels – biodiesel (B20 to B100) and glycerin transfer
-
Automotive aftermarket – oil catch can lines, turbo oil drains, fuel system plumbing
-
Aerospace ground support – fuel dispensing, hydraulic test stands
-
Food equipment – non-food lubrication lines (no food contact)
Contact Shenzhen Forbest. Ask for a sample or a quote. Tell us your application, and we will recommend the right compound and size.
