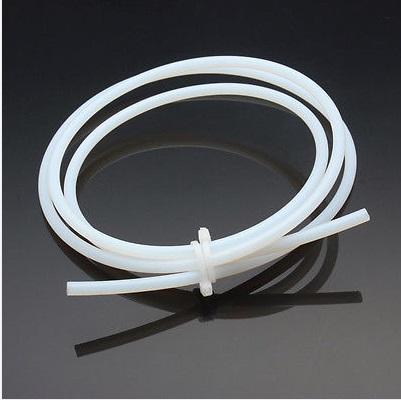

Key Features of PTFE Tubing
Temperature Resistance: Wide operating temperature range (-40°C to +260°C), with short-term resistance to temperatures up to 300°C. Low Friction: The smooth surface resists adhesion and has an extremely low friction coefficient.
Insulation: Excellent electrical insulation and high-voltage resistance. Weather and Aging Resistance: UV and weather resistance, ensuring stable long-term performance.
Non-toxic and inert: Meets food-grade and medical standards. Chemical Resistance: Resistant to nearly all strong acids, bases, organic solvents, and oxidizing agents (except molten alkali metals and fluorides).
Advantages of PTFE Tubing:
Excellent chemical stability: Resists corrosion by nearly all chemicals, making it suitable for conveying corrosive media. Excellent temperature resistance: Resists high and low temperatures, adapting to a variety of environmental conditions.
Low friction coefficient: Reduces drag and improves fluid conveyance efficiency. Electrical insulation: Suitable for protecting electrical equipment and cables. Long service life: Low maintenance costs. Good biocompatibility.
Applications of PTFE Tubing:
Chemical Industry:
Electrical Industry:
Medical Industry:
Food Industry:
Automotive and Aerospace:
Construction and Piping:
Due to its corrosion resistance and high-temperature resistance, PTFE tubing is used in building piping and steam systems to transport high-temperature steam and corrosive gases.
| Usage | PTFE tubing is designed for high-temperature fluid transfer and corrosive chemical handling across a wide range of industries.
Its non-reactive properties make it ideal for applications such as: Safely transferring acids, bases, and solvents in chemical plants Protecting electrical wires in extreme heat (up to 260°C) Ensuring contamination-free fluid transfer in pharmaceutical and food-grade applications Providing customized solutions for complex industrial systems requiring precise dimensions |
| Main features | 1 260°C Heat-Resistant PTFE Hose: Stable performance in extreme temperatures (-100°C to +260°C)
2. Chemical Resistance: Resistant to 98% concentrated sulfuric acid, chlorine, and organic solvents 3. Customizable PTFE Tubing Sizes: ID: 1mm to 50mm | Wall Thickness: 0.5mm to 5mm (Minimum Order Quantity: 100 meters) 4. Ultra-Low Friction Surface: Reduces fluid adhesion loss by 30% compared to standard tubing 5. Safety Certifications: Compliant with FDA 21 CFR, RoHS, and REACH regulations, suitable for global markets 6. High Tensile Strength: Withstands 15 MPa of pressure without deformation (ASTM D 10000). |
| Samples | Free samples |
Size of PTFE Tubing
|
ID(mm)
|
ID tolerance (mm)
|
wall thickness(mm)
|
wall tolerance(mm)
|
|
5
|
±0.2
|
0.5 1.0 1.5 2.0
|
±0.2
|
|
6
|
±0.2
|
0.5 1.0 1.5 2.0
|
±0.2
|
|
7
|
±0.2
|
0.5 1.0 1.5 2.0
|
±0.2
|
|
8
|
±0.2
|
0.5 1.0 1.5 2.0
|
±0.2
|
|
9
|
±0.3
|
1.0 1.5 2.0
|
±0.3
|
|
10
|
±0.3
|
1.0 1.5 2.0
|
±0.3
|
|
11
|
±0.3
|
1.0 1.5 2.0
|
±0.3
|
|
12
|
±0.3
|
1.0 1.5 2.0
|
±0.3
|
|
13
|
±0.1
|
1.5 2.0 2.5
|
±0.3
|
|
14
|
±0.1
|
1.5 2.0 2.5
|
±0.3
|
|
15
|
±0.1
|
1.5 2.0 2.5
|
±0.3
|
|
16
|
±0.1
|
1.5 2.0 2.5
|
±0.3
|
|
17
|
±0.1
|
1.5 2.0 2.5
|
±0.3
|
|
18
|
±0.1
|
1.5 2.0 2.5
|
±0.3
|
|
19
|
±0.1
|
1.5 2.0 2.5
|
±0.3
|
|
20
|
±0.1
|
1.5 2.0 2.5
|
±0.3
|
|
22
|
±0.1
|
1.5 2.0 2.5
|
±0.3
|
Contact us today to request a quote or discuss your custom requirements.
