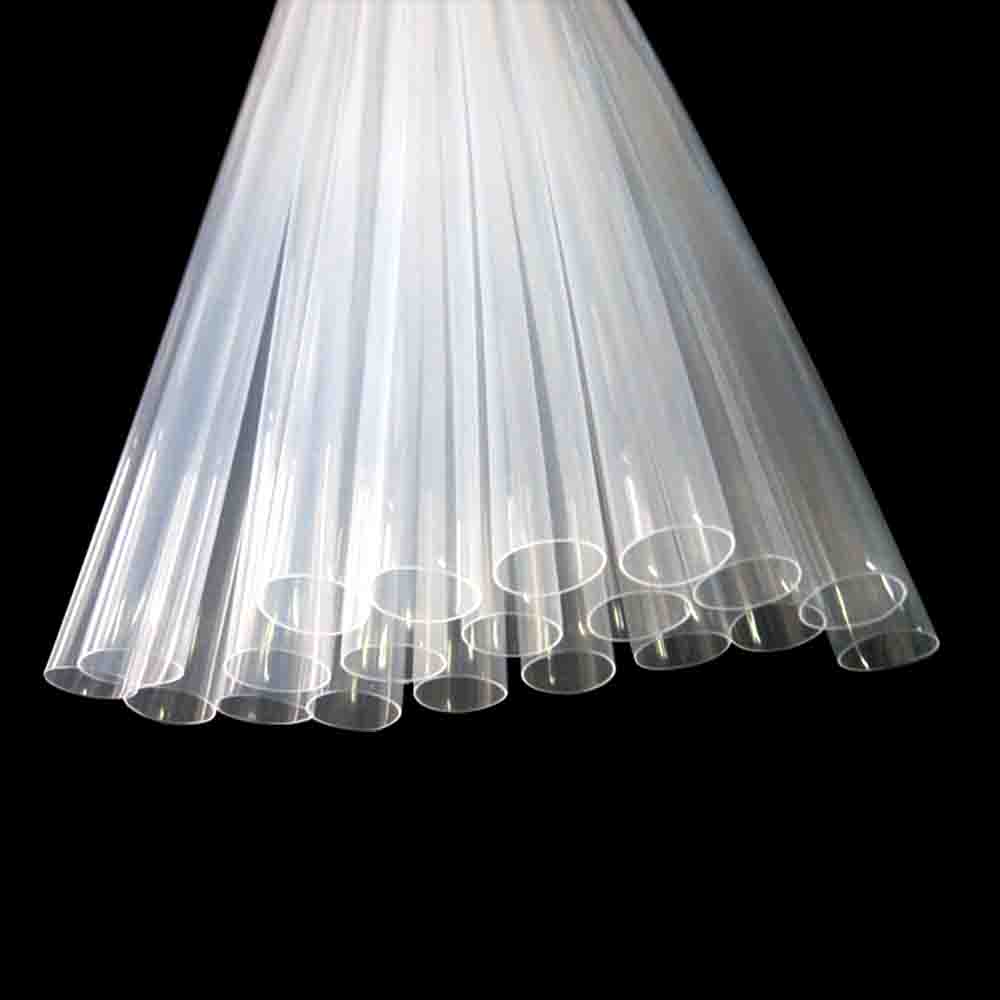

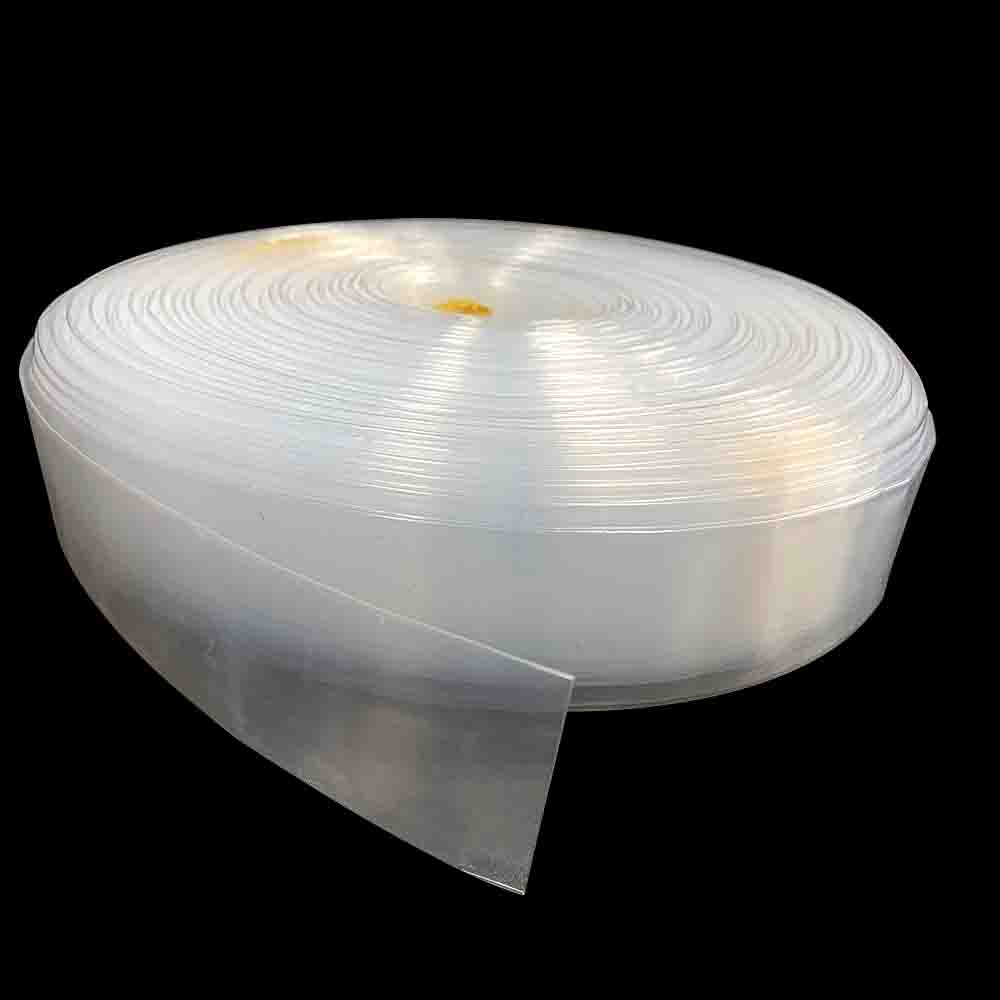

PFA heat shrink tubing is a high-performance fluoroplastic heat-shrink tubing primarily made from perfluoroalkoxy resin.
This material offers excellent high-temperature and chemical resistance, non-stick properties, and electrical insulation.
Upon heating, PFA heat shrink tubing shrinks radially, conforming tightly to the object it wraps, forming a protective layer that provides sealing, insulation, and mechanical protection for wire and cable joints, connectors, electronic components, and other parts requiring protection.
PFA Heat Shrink Tubing Characteristics
1. Wide Temperature Range:
2. Chemical Resistance:
3. Electrical Properties:
4. Transparency and Cleanliness:
5. Mechanical Strength:
6. Non-stick:
7. Environmentally Friendly and Non-Toxic:
PFA heat shrink tubing complies with RoHS and other environmental standards, making it suitable for use in food processing and medical applications.
| Usage | Specifically designed to provide hermetic sealing and corrosion protection for heat exchanger components exposed to extreme temperatures, corrosive chemicals, and high pressures |
| Main features | 1. Extreme Temperature Resistance – Stable performance from -200°C to +260°C (-328°F to +500°F), ideal for thermal cycling
2. Excellent Chemical Resistance – Resistant to acids, bases, solvents, and chlorides 3. Hermetic Seal – Prevents leaks at high-pressure heat exchanger joints and connections 4. Non-stick Surface – Reduces contaminant accumulation and simplifies maintenance 5. High Mechanical Strength – Maintains integrity under vibration and mechanical stress 6. Safety Certifications – UL, FDA, and ROHS compliant for industrial and food-grade applications |
| Application | 1. Heat Exchangers – Sealing pipes, manifolds, and gaskets in chemical plants, HVAC systems, and power plants
2. Chemical Processing – Protecting pipes and valves in corrosive acid and alkali environments 3. Oil and Gas – Shielding connections in refinery heat recovery systems 4. Food and Beverage – Safe for use in steam sterilization and CIP (clean-in-place) systems 5. Pharmaceuticals – Used in reactors and condensers requiring non-toxic, high-purity materials 6. Renewable Energy – Ensuring the durability of geothermal and solar heat exchangers |
| Samples | Free samples,you just need to pay for the courier charges |
PFA Heat shrink tubing Specification
| Expand ID (mm) |
Recovery ID (mm) |
Wall thickness (mm) |
| 1.8 | 1.4 | 0.2 |
| 2.2 | 1.8 | 0.2 |
| 3 | 2.4 | 0.2 |
| 3.5 | 3 | 0.2 |
| 4 | 3.5 | 0.2 |
| 5.2 | 4.2 | 0.2 |
| 6 | 5.4 | 0.2 |
| 7.1 | 6.3 | 0.2 |
| 9.5 | 7.5 | 0.3 |
| 11 | 9.2 | 0.3 |
| 12.9 | 10.7 | 0.3 |
| 16 | 13 | 0.4 |
| 19 | 16.5 | 0.5 |
| 21 | 18.5 | 0.5 |
| 24 | 19.5 | 0.5 |
| 26 | 21.5 | 0.5 |
| 30 | 24 | 0.5 |
| 33 | 27 | 0.5 |
| 36 | 28.5 | 0.5 |
| 43 | 35 | 0.5 |
| 51 | 40 | 0.5 |
| 57 | 49 | 0.5 |
| 63 | 50 | 0.5 |
| 67 | 54 | 0.5 |
| 71 | 61 | 0.5 |
| 75 | 61 | 0.5 |
| 81 | 64 | 0.5 |
| 91 | 74 | 0.5 |
| 98 | 82 | 0.5 |
| 106 | 85 | 0.5 |
| 109 | 86 | 0.5 |
| 117 | 96 | 0.5 |
| 127 | 106 | 0.5 |
| 136 | 107 | 0.5 |
| 144 | 125 | 0.5 |
| 154 | 125 | 0.5 |
Contact us today to request a quote or discuss your custom requirements.
