Product Introduction: The Pinnacle of High-Performance Shrinkable Protection
In applications where failure is not an option, standard protection solutions fall short. Shenzhen Forbest, a leading China-based manufacturer and supplier, introduces our flagship FEP Heat Shrink Tubing – the definitive solution for engineers and designers confronting extreme environmental challenges.
Unlike conventional polyolefin shrink tubing, Forbest’s FEP variant thrives where others fail.
It provides a seamless, conformal barrier against the most aggressive chemicals, solvents, and fuels, while maintaining exceptional dielectric properties from cryogenic temperatures up to 205°C.
Its near-perfect transparency allows for visual inspection of underlying components, making it indispensable in critical aerospace, military, medical, and high-purity industrial applications.
When you need a shield that is as intelligent as it is resilient, our FEP Heat Shrink Tubing is the engineered answer.

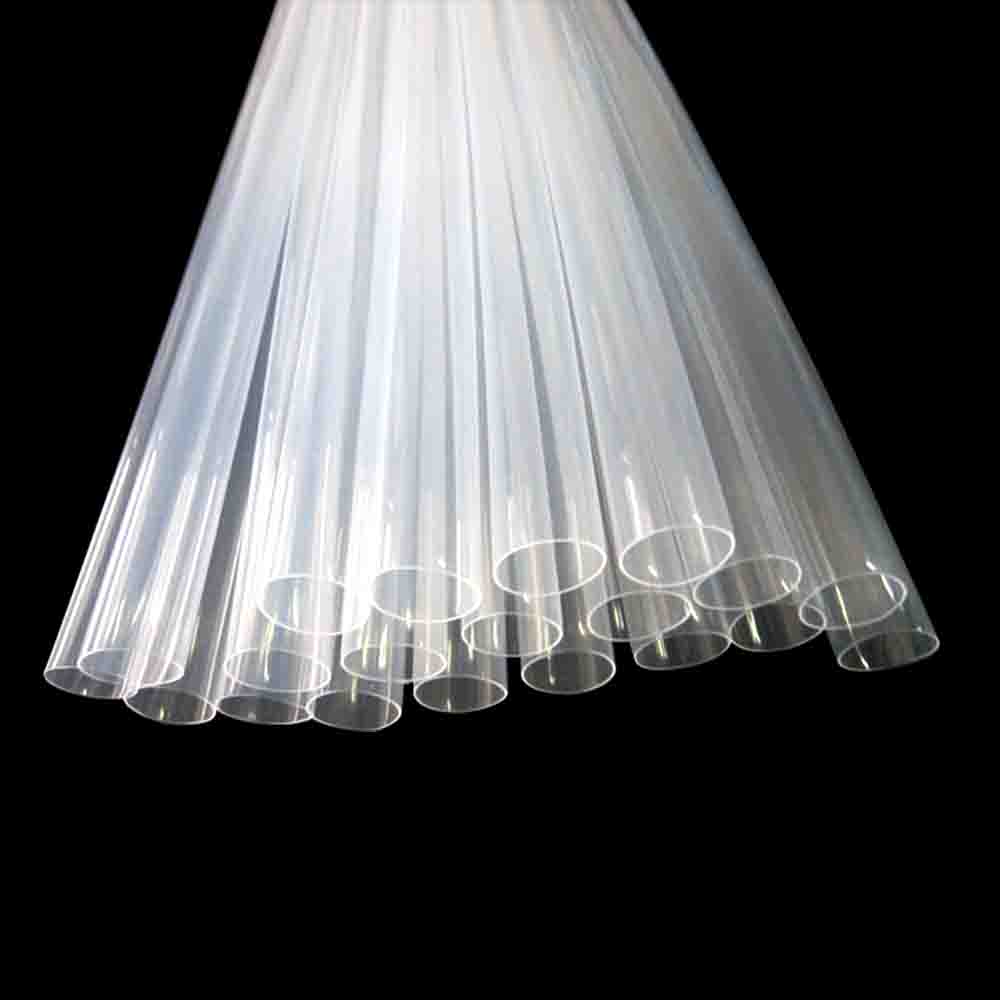

Product Introduction: Engineering Excellence in a Shrinkable Sleeve
The demand for reliable performance in hostile environments drives innovation in material protection.
Shenzhen Forbest’s FEP Heat Shrink Tubing is born from this imperative, designed to serve as the first and last line of defense for critical assets.
At its core, FEP is a fully fluorinated polymer, a close relative of PTFE (Teflon™), but with the crucial advantage of being melt-processable and heat-shrinkable.
This unique property allows it to transform from a loose sleeve into a tight, monolithic jacket upon heating, creating a custom-fitted barrier that is both mechanically robust and chemically impervious.
The primary value proposition lies in its universal chemical resistance. Our FEP tubing is inert to virtually all industrial chemicals, including strong acids, bases, aldehydes, ketones, alcohols, and hydrocarbons.
This makes it the only choice for protecting sensors, wiring harnesses, and fluidic systems in chemical processing, pharmaceutical manufacturing, and fuel handling applications, where exposure would rapidly degrade lesser materials.
Furthermore, its operational temperature range of -80°C to 205°C ensures performance integrity whether in the deep freeze of space simulation or adjacent to high-heat engine components, without cracking or becoming brittle.
A critical, often overlooked, feature is its optical clarity and stability. The tubing transmits over 94% of visible light, allowing for easy inspection of wire markings, solder joints, or component conditions—a non-negotiable requirement in avionics, medical devices, and complex machinery.
Unlike other clear plastics, FEP does not yellow or haze when exposed to UV radiation or gamma sterilization, maintaining its transparency and physical properties over decades.
This combination of durability, clarity, and resilience establishes our FEP Heat Shrink Tubing not merely as a component, but as a critical system-enabling material that guarantees longevity and reliability in the world’s most advanced technologies.
2. Specifications, Details & Comparative Advantage
Selecting the right heat shrink requires a deep understanding of specifications. The data below delineates why Forbest’s FEP Tubing stands as the premium choice for mission-critical applications.
Key Performance Parameters Table
| Parameter | Technical Specification | Significance & Application Benefit |
|---|---|---|
| Material Composition | 100% Virgin, High-Purity FEP Resin | Ensures batch-to-batch consistency, superior electrical properties, and compliance with high-reliability standards. |
| Shrink Temperature | 110°C (Minimum) | Allows for controlled, uniform shrinkage using standard industrial tools without damaging sensitive components. |
| Dielectric Constant | 2.1 @ 1 MHz | Provides excellent electrical insulation with minimal signal loss, ideal for high-frequency and sensitive electronic packaging. |
| Volume Resistivity | > 10¹⁷ Ω·cm | Offers near-perfect insulation, preventing leakage current and short circuits in high-voltage or miniaturized electronics. |
| Water Absorption | < 0.01% | Negligible moisture uptake guarantees stable dielectric performance and prevents corrosion in humid or submerged environments. |
| Tensile Strength | > 20 MPa (ASTM D638) | Provides excellent mechanical abrasion resistance and durability against physical stress in wire harnessing and cable management. |
| FDA / USP Compliance | FDA 21 CFR 177.1550 compliant; suitable for USP Class VI testing. | Certifies safety for use in food processing equipment, pharmaceutical manufacturing, and medical devices. |
FEP Heat Shrink Tubing Sizes
| 1.3 : 1 FEP FEP Heat shrink tube AWG Specification | ||||||||
| Size | ID before Shrink ( D) | Full Shrink Size | ||||||
| ID After Shrink (d) | Wall thickness ( W) | |||||||
| Standard | Tolerance ( ± ) | |||||||
| INCH | MM | INCH | MM | INCH | MM | INCH | MM | |
| 13 | 0.075 | 1.905 | 0.061 | 1.549 | 0.009 | 0.229 | 0.002 | 0.051 |
| 12 | 0.092 | 2.337 | 0.072 | 1.829 | 0.009 | 0.229 | 0.002 | 0.051 |
| 11 | 0.115 | 2.921 | 0.089 | 2.261 | 0.009 | 0.229 | 0.002 | 0.051 |
| 10 | 0.141 | 3.581 | 0.114 | 2.896 | 0.010 | 0.254 | 0.003 | 0.076 |
| 9 | 0.158 | 4.013 | 0.124 | 3.150 | 0.010 | 0.254 | 0.003 | 0.076 |
| 8 | 0.180 | 4.572 | 0.143 | 3.632 | 0.010 | 0.254 | 0.003 | 0.076 |
| 7 | 0.197 | 5.004 | 0.158 | 4.013 | 0.011 | 0.279 | 0.004 | 0.102 |
| 6 | 0.225 | 5.715 | 0.180 | 4.572 | 0.011 | 0.279 | 0.004 | 0.102 |
| 5 | 0.248 | 6.299 | 0.198 | 5.029 | 0.011 | 0.279 | 0.004 | 0.102 |
| 4 | 0.290 | 7.366 | 0.226 | 5.740 | 0.011 | 0.279 | 0.004 | 0.102 |
| 3 | 0.310 | 7.874 | 0.249 | 6.325 | 0.011 | 0.279 | 0.004 | 0.102 |
| 2 | 0.365 | 9.271 | 0.280 | 7.112 | 0.012 | 0.305 | 0.004 | 0.102 |
| 1 | 0.400 | 10.160 | 0.311 | 7.899 | 0.012 | 0.305 | 0.004 | 0.102 |
| 0 | 0.400 | 11.176 | 0.349 | 8.865 | 0.012 | 0.305 | 0.004 | 0.102 | ||
| Sizes | ID Before Shrink(D) | Full shrink sizes | ||||||||
| Max ID(d) | Wall thickness | |||||||||
| Standard | Tolerance ( ± ) | |||||||||
| Inch | Inch | （mm） | Inch | mm | Inch | mm | inch | mm | Inch | mm |
| 3/8 | 0.375 | 9.53 | 0.500 | 12.700 | 0.383 | 9.728 | 0.015 | 0.381 | 0.004 | 0.102 |
| 7/16 | 0.438 | 11.11 | 0.580 | 14.732 | 0.448 | 11.379 | 0.020 | 0.508 | 0.004 | 0.102 |
| 1/2 | 0.500 | 12.70 | 0.666 | 16.916 | 0.510 | 12.954 | 0.020 | 0.508 | 0.004 | 0.102 |
| 5/8 | 0.625 | 15.88 | 0.830 | 21.082 | 0.637 | 16.180 | 0.025 | 0.635 | 0.004 | 0.102 |
| 3/4 | 0.750 | 19.05 | 1.000 | 25.400 | 0.764 | 19.406 | 0.030 | 0.762 | 0.004 | 0.102 |
| 7/8 | 0.875 | 22.23 | 1.170 | 29.718 | 0.891 | 22.631 | 0.035 | 0.889 | 0.004 | 0.102 |
| 1 | 1.000 | 25.40 | 1.330 | 33.782 | 1.020 | 25.908 | 0.035 | 0.889 | 0.004 | 0.102 |
| 1-1/8 | 1.125 | 28.58 | 1.500 | 38.100 | 1.145 | 29.083 | 0.035 | 0.889 | 0.004 | 0.102 |
| 1-1/4 | 1.240 | 31.75 | 1.666 | 42.316 | 1.270 | 32.258 | 0.035 | 0.889 | 0.004 | 0.102 |
| 1-3/8 | 1.375 | 34.93 | 1.833 | 46.558 | 1.390 | 35.306 | 0.035 | 0.889 | 0.004 | 0.102 |
| 11/2 | 1.500 | 38.10 | 2.000 | 50.800 | 1.570 | 39.878 | 0.035 | 0.889 | 0.004 | 0.102 |
| FEP Heat shrink tube 1.6 : 1 Shrink ratio Specification | ||||||||||
| ID Before
Shrink ( D) |
Full shrink size | |||||||||
| ID after shrink (d) | Wall thickness | |||||||||
| Tolerance ( ± ) | ||||||||||
| Inch | Inch | （mm） | Inch | mm | Inch | mm | Inch | mm | Inch |
mm |
|
3/32 |
0.094 |
2.38 |
0.094 |
2.38 |
0.056 |
1.422 |
0.008 |
0.203 |
0.003 |
0.076 |
|
1/8 |
0.125 |
3.18 |
0.125 |
3.18 |
0.075 |
1.905 |
0.010 |
0.254 |
0.003 |
0.076 |
|
3/16 |
0.188 |
4.76 |
0.188 |
4.76 |
0.115 |
2.921 |
0.010 |
0.254 |
0.003 |
0.076 |
|
1/4 |
0.250 |
6.35 |
0.250 |
6.35 |
0.150 |
3.810 |
0.010 |
0.254 |
0.003 |
0.076 |
|
3/8 |
0.375 |
9.53 |
0.375 |
9.53 |
0.225 |
5.715 |
0.012 |
0.305 |
0.003 |
0.076 |
| 1/2 | 0.500 | 12.70 | 0.500 | 12.70 | 0.300 | 7.620 | 0.015 | 0.381 | 0.004 | 0.102 |
| 3/4 | 0.750 | 19.05 | 0.750 | 19.05 | 0.450 | 11.430 | 0.020 | 0.508 | 0.004 | 0.102 |
| 1 | 1.000 | 25.40 | 1.000 | 25.40 | 0.600 | 15.240 | 0.025 | 0.635 | 0.005 | 0.127 |
|
1-1/2 |
1.500 |
38.10 |
1.500 |
38.10 |
0.900 |
22.860 |
0.030 |
0.762 |
0.005 |
0.127 |
| 2 | 2.000 | 50.80 | 2.000 | 50.80 | 1.200 | 30.480 | 0.030 | 0.762 | 0.005 | 0.127 |
Comparative Advantage: The Definitive Benchmark
-
vs. Polyolefin Heat Shrink (Standard): Polyolefin offers basic protection but has poor chemical resistance, limited temperature range (typically -55°C to 135°C), and yellows under UV light. FEP is chemically inert, handles extreme temperatures, and is UV-stable.
-
vs. PVC Heat Shrink: PVC has lower temperature resistance, can emit corrosive fumes when overheated, and becomes rigid at low temperatures. FEP is thermally superior, inert, and remains flexible across its entire range.
-
vs. PTFE (Teflon™) Tape or Sleeving: PTFE shares chemical resistance but is not heat-shrinkable, making it impossible to achieve a seamless, conformal seal. FEP provides a uniform, gap-free barrier via heat application.
-
vs. Silicone Rubber: Silicone is permeable to gases and moisture, has lower abrasion resistance, and can degrade with certain chemicals. FEP provides a hermetic, non-porous, and universally chemically resistant seal.
Conclusion: The Strategic Choice for Uncompromised Performance
Shenzhen Forbest’s FEP Heat Shrink Tubing is the material of choice when specifications demand more than ordinary performance.
It is the solution that eliminates doubt, reduces lifecycle costs by preventing failures, and enables innovation in design by allowing operation in previously prohibitive environments.
As an experienced manufacturer and supplier in China, we provide not only top-tier material but also technical support for custom sizes, colors, and printing.
Elevate your project’s reliability with the proven protection of FEP. Contact Shenzhen Forbest today to discuss your application requirements and request samples.
