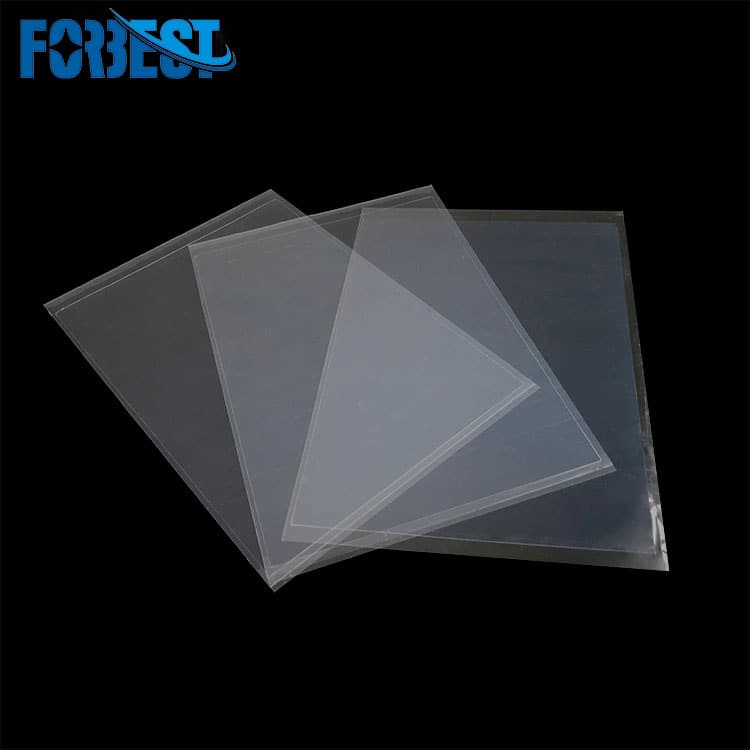

Engineered for precision and durability, the Shenzhen Forbest FEP 3D Printing Film is the critical interface between your UV light source and liquid resin. Manufactured in our ISO-certified facility, this film offers an optically clear, low-friction surface that ensures consistent layer curing and effortless model release.
Extruded from high-purity FEP resin, it guarantees the longevity of your 3D printing vat and a high success rate for your prints.
| Material | High-Purity FEP | Fluorinated Ethylene Propylene Copolymer |
| UV Transmittance | >95% | Ensures optimal light exposure for rapid curing |
| Working Temperature | -200°C to +200°C | Exceptional thermal stability for all resin types |
| Thickness Options | 0.10mm, 0.15mm, 0.20mm | Custom thicknesses available upon request |
| Release Force | Stable & Low | Engineered non-stick surface reduces peel forces |
| Ductility | Up to 300% | High flexibility to withstand thousands of printing cycles |
In the world of LCD, DLP, and SLA resin 3D printing, the quality of your final print is directly determined by the consumables you use. While resin and exposure times are often the focus, the FEP 3D Printing Film at the bottom of your vat plays an equally critical role. At Shenzhen Forbest, we have perfected the manufacturing of this essential component.
As a premier FEP 3D Printing Film China manufacturer and factory, we understand that printers require a film that offers three non-negotiable qualities: optical clarity, chemical inertness, and a non-stick surface. Our FEP film is a hot-melt extrusion cast film derived from ultra-high-purity FEP resin (Fluorinated Ethylene Propylene copolymer) .
This specific formulation allows our film to maintain the excellent release properties of PTFE while offering the unique advantage of high light transmittance and thermoformability, making it the perfect choice for the bottom of your resin tank .
Choosing Shenzhen Forbest means choosing a product developed with the expertise of a leading FEP 3D Printing Film supplier dedicated to the global additive manufacturing market. We provide the reliability and consistency required by both hobbyists and industrial users.
Details & Comparative Advantages
To truly appreciate the quality of Forbest FEP film, one must look beyond the surface. Our film is engineered to solve the most common pain points in resin printing: print failures, vat damage, and short consumable lifespan.
Why Shenzhen Forbest FEP Film Excels:
-
Superior UV Transmittance (>95%): Our film allows over 95% of UV light to pass through, ensuring that each layer cures uniformly and with maximum adhesion to the build plate or previous layer . This minimizes the risk of delamination and failed prints. Standard films with lower transmittance can cause under-curing, leading to mushy details.
-
Consistent Anti-Stick Release Force: The holy grail of resin printing is the quiet “pop” of the cured layer separating from the FEP. Our film features a stable, low release force. Unlike generic films that can develop sticky spots or inconsistent tension over time, Forbest FEP provides a smooth, flawless surface free of wrinkles and bubbles, ensuring that every separation is clean and that delicate models don’t tear .
-
Exceptional Durability & Flexibility: With an impressive ductility of up to 300%, our film can endure the constant back-and-forth peeling forces of high-speed printing . It is designed to withstand over 10,000 bending cycles without cracking or deforming, significantly outlasting lower-quality alternatives and protecting your expensive LCD screen from resin leaks .
-
Chemical & Thermal Resistance: Resin is corrosive, and the printing process generates heat. Forbest FEP film is chemically inert, resisting all common UV resins, strong acids, and solvents . It operates flawlessly across a massive temperature range (-200°C to +200°C), ensuring stable performance regardless of the printing environment .
Technical Specifications
The following table outlines the standard specifications for Shenzhen Forbest FEP 3D Printing Film. As a flexible FEP 3D Printing Film factory, we also welcome custom dimensions and packaging OEM/ODM services.
| Property | Unit | Value | Test Standard / Note |
|---|---|---|---|
| Material Composition | – | 100% Virgin FEP | High-Purity Resin |
| Color | – | Water Clear / Transparent | – |
| Density | g/cm³ | 2.12 – 2.17 | ASTM D1505 |
| Tensile Strength | MPa | ≥ 19.5 | ASTM D882 |
| Elongation at Break | % | ≥ 250% – 300% | ASTM D882 |
| UV Light Transmittance | % | > 95% (at 405nm) | Critical for LCD Printers |
| Continuous Service Temp | °C | -200 to +200 | Outstanding Stability |
| Refractive Index | – | 1.34 – 1.35 | Lowest of all plastics |
| Dielectric Strength | kV/mm | > 200 | High Insulation |
| Standard Thicknesses | mm | 0.10, 0.15, 0.20 | ±0.01mm Tolerance |
| Available Dimensions | mm | Custom (e.g., 200×140, 260×200, 286×198) | For any printer size |
Compatibility
Shenzhen Forbest FEP 3D Printing Film is designed to be a universal replacement part, compatible with the vast majority of resin printers on the market. Whether you own a machine from Anycubic, Elegoo, Creality, Phrozen, or a custom-built DLP printer, we have the right size.
-
Universal Fit: Suitable for all LCD, DLP, and SLA printers that utilize a film-based vat bottom .
-
Easy Installation: Our films come with protective layers on both sides to prevent dust and scratches during shipping. These layers are slightly larger than the film itself for easy removal, making installation quick and hassle-free .
Upgrade your printing experience today with Shenzhen Forbest—where quality meets innovation. Contact us for custom orders or to become a distributor.
